post #1 of 28 (permalink) Old 10-31-2013, 11:15 PM Thread Starter
Registered User

Final Impact's Avatar

Join Date: Sep 2012
Location: USA, OR
Posts: 2,660
Mentioned: 109 Post(s)
Tagged: 1 Thread(s)
Quoted: 533 Post(s)
Thanks: 1,138
Thanked 942 Times in 635 Posts
Groans: 0
Groaned at 4 Times in 4 Posts
iTrader: 0 reviews
Arrow Water Pump replacement//Coolant T By-Pass

Well if you eve seen one of these, you can only guess what happened inside
KABOOM to the plastic WATER PUMP IMPELLER!!!


Which leads too this!


Notice the Missing Belt?
When the pump stopped turning, the belt burned. I ran it about a 1/2 mile part of which was idling waiting at lights. Then I heard the Chug Chug CHug of the over-flow tank filling.


Spacing to reach and grab....
So, without the "designated tool" for the job, what shall we use at home? I just need to make sure that what ever puller I rig up will fit in the small space.


Looks like we need something like this:


I see a split collar with bolts holding it together (or a clamp) and then using a basic puller like the illustration. I still need a metric bolt of unknown OD and pitch to install it though....

Mazda V6 3.0, Duratec Ford Water Pump Puller, Pulley.

More to come - stay posted...
Attached Thumbnails
Click image for larger version

Name:	WEB.IMG_20131031_130857_157.BELT.jpg
Views:	26378
Size:	95.4 KB
ID:	99713   Click image for larger version

Name:	WEB.IMG_20131031_150857_645.CAR1.jpg
Views:	21573
Size:	49.5 KB
ID:	99721   Click image for larger version

Name:	WEB.IMG_20131031_182808_662.PULLEY4.jpg
Views:	2846
Size:	55.3 KB
ID:	99737   Click image for larger version

Name:	WEB.IMG_20131031_182615_650.PULLEY3.jpg
Views:	82709
Size:	48.6 KB
ID:	99745   Click image for larger version

Name:	WEB.IMG_20131031_183050_645.PULLEY2.jpg
Views:	24562
Size:	95.9 KB
ID:	99785

Click image for larger version

Name:	web.Puller1.jpg
Views:	30255
Size:	58.5 KB
ID:	99793   Click image for larger version

Name:	web.Puller2.jpg
Views:	20772
Size:	25.9 KB
ID:	99833

2006 Mazda 6s GS Hatchback, Lapis Blue | AJ 3.0 & AW6A-EL 6 Spd, >119,000

__________________________________________________ __________________
V6 repair info here:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by Final Impact; 11-21-2013 at 10:39 PM.
Final Impact is offline
The Following User Says Thank You to Final Impact For This Useful Post:
mouse farts (01-19-2015)
Sponsored Links
Advertisement

post #2 of 28 (permalink) Old 10-31-2013, 11:17 PM Thread Starter
Registered User

Final Impact's Avatar

Join Date: Sep 2012
Location: USA, OR
Posts: 2,660
Mentioned: 109 Post(s)
Tagged: 1 Thread(s)
Quoted: 533 Post(s)
Thanks: 1,138
Thanked 942 Times in 635 Posts
Groans: 0
Groaned at 4 Times in 4 Posts
iTrader: 0 reviews
Diy water pump install notes.....

Some outtakes from my seized up water pump at 92,XXX. I'm not going to hold your hand here. If you need instructions to remove the engine cover, you won't find it here. You will find some things to help you successfully replace the water pump and remove the Throttle Body hose "T" which is a weak link allowing your coolant to spill out when you least expect it. Beyond the basic hand tools, there are a couple specialty tools your need for this repair.

Drain the Radiator:
The system holds 9 quarts. With a pan and a larger Phillips screwdriver, remove the drain plug at the center of the radiator. Keep track of the rubber washer and plastic plug. This will not get 9 qts. Removing the lower hose from the water pump suction side will allow a fair amount of coolant from the engine. But not all of it.


Essential Tool for hose removal! GET IT!
I'm removing the lower water pump hose to get rid of hose to the TB. I plugged it year ago when the T on the top snapped. Its not necessary unless you need to 1) Get more coolant out, 2) get rid of this hose, 3) remove water pump body.

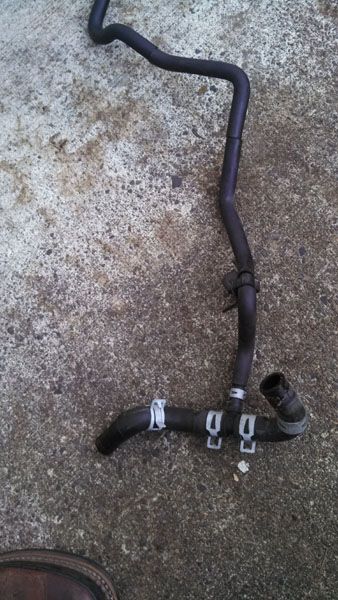

Lower water pump hose w/long hose to the TB:
During the water pump replacement I removed the T replacing it with straight through 5/8" coupler.

At the parts store, this hose looked like might make replacement once cut down to size. The goal being, "LESS HOSE CLAMPS, LESS LEAKS". Notice the "T". It will be removed and replaced to complete the "T" by-pass.


Return to this distance!
Just make sure the Pulley is flush to CAM (Look Inside)!


Puller Solution for water pump drive pulley is Harbor Freight.
Grab the Complete kit as you must have the small bearing splitter and they don't sell it by itself. Also the bolts in the kit will not pass through the pulley as they are large Hex bolts. Grab some 3/8" NC X 5" bolts and use them as shown below.
Here I used the "puller assembly" from another kit as its more compact and fits in the tight space. I also removed the bolts securing the power steering reservoir and the cooling fan relay just to get a straight shot at the work area and not strain anything.


Notice the installer tool with the extension on it: You need this to put the pulley back on. I rented a kit "OEM 27031, for power steering pulley removal and install".


With no strain at all (rotational torque applied to CAM), the pulley cam right off.
Be wise here as you could damage the Timing Chain Guides or Chain Tensioner if you go nuts with the torque and it is doesn't move easily. PS - soaked pulley w-PB Blaster before I left to get parts. If it does not break free with minimal effort, hold the pulley to prevent it from rotating BUT DO NOT TURN IT!!


Same PN and Patent on the impellers:
Notice the burn marks where the Impeller spun up against the housing. It did this on both sides when the bearings failed.


Notice a little different casting design:


Pump housing is cleaned and ready for install
I just need to check the pump depth with NO GASKET and confirm it rotates and doesn't contact. it checked out fine so I'll bolt it up!


***************************************
Things to know:
***************************************

THE GASKET:
The after market pump came with CHEAP paper gasket. OEM used a steel coated rubber shim (AJ5715116, WATER PUMP ASSY GASKET, $9.09). I sprayed the USED METAL SHIM with MAF cleaner and then gloss black spray paint and re-used it as it I didn't want it seeping a year from now. Lets just say the quality of the loosely composed fibers in the supplied paper gasket WILL SEEP in a year and get loose if you don't tighten it.
If you use the PAPER gasket; seal it with Spray Copper Coat or Gloss Paint. Saturate it! Its paper, it has turbine spinning throwing high volumes of coolant at it. IT WILL DISSOLVE TO SOME EXTENT and SEEP! Silicon will not prevent this.

WP Bolt torque: 88 in/lbs
Also TWO of the bolts that hold the pump assembly to the block are under the pulley! (Engineering at its best!)

WP PULLEY INSTALL:
Clean both the CAM and the pulley. Grease them with white grease. Get the pulley started straight. If it goes on crooked - STOP! Remove it. Mine went on crooked twice and made a ridge inside the pulley. Use a small file to deburr it. In the end, I had a long piece of wood forcing the pulley straight while tightening it.

So long Mr T!
If you want to remove the coolant "T" that warms the throttle body you'll need a 90 degree elbow (3/4" X 3/4"). If Vehicle reliability is IMPORTANT TO YOU; REPLACE IT it with a more robust design or remove it. It is known to break and fail! To remove it, you also need to remove the T that connects to the water pump. See NOTES BELOW!


This T snapped while I was out of town. To get home, I tapped the hole and threaded a bolt covered in Epoxy to ensure no leaks. It was still holding when I removed the rest of the plumbing.


COOLANT CAPACITY:
V6 = 9 US Qts.
Pulling the plug on the radiator will get you about 2 qts. Pulling the lower WP hose another 1.5 qts, Dumping coolant tank another 0.5 qts, moving vehicle to nose down about 1.0 qt. I was able to add 5 qts of fresh fluid to my water mix.

BELT INSTALL:
***************************************
2003 - 2005 Remove the idler pulley, throw away the long belt and use the stretch fit belt if the idler pulley fails. PN: GOOD YEAR, 4030195S
PS - you'll know its stretch fit as it costs about $1.50 an inch. lol

***************************************
The OD of the NEW Stretch to fit belt is about 20" on the outside (19" on the inside) and it really doesn't look like it will fit. IT DOES! Fit the belt around the WP and up the rear side of the pulley. Secure the last seated section to the pulley Using a ZIP TIE (Radiator side will be off the pulley). From the passenger side wheel well USE A 19MM socket to ROTATE the CRANK CLOCKWISE until the belt is seated.
OR US THE STARTER to mount the Belt. FIRST - REMOVE THE "FUEL PUMP RELAY"!! This will keep the engine from running should you bump the key for too long.
Its in the cabin at the left front in the Kick panel next to the "BLOWER FAN RELAY"

NOTE - Removing the Fuel Injector FUSE (15A under the hood) DISABLES the STARTER. You CAN NOT remove that fuse and turn the key to mount the belt. I tried. Great idea, but no dice! All I got for my effort was a MIL code. It went away on its own after 3 starts....
***************************************
COOLANT BY-PASS at the THROTTLE BODY:
***************************************
UPPER PRESSURE HOSE BROKEN T :
Replace T with 90 degree elbow. Hoses accept 0.75" - 3/4" both sides.
But technically its 0.75" and 0.76" for the 90.
- >> OEM PN: parts.arlingtonmazda.com/products/HOSE,WATER-(GK3K%252d61%252d24XH) GK3K-61-24XH, HOSE,WATER
HOSE CLAMPS:
2 X 1.1" ~ 1.25" ID for pressure side WP at 90 degree T
2 X 1.1" ~ 1.25" ID for heater hoses to the cabin

LOWER SUCTION SIDE of WATER PUMP:
Lower T needs By-Pass as "STRAIGHT THROUGH". Size: 5/8" = 0.625"
HOSE CLAMPS:
4 X 0.975" ID for suction side of WP


Some Part Numbers:
3.0 LITER MAZDA PN: BELTS & PULLEYS for 2008 Mazda 6
AJ5715908, WATER PUMP BELT, $14.25 << PRETTY SURE THIS IS WHY SEVERAL PARTS SYSTEM WILL HAND YOU THE WRONG BELT. Several sights ARE INCORRECT! The Stretch belts are $25 and up. I USED A GOOD YEAR PN: 4030195S << S is stretch fit.
AJTM15010, WATER PUMP ASSY, $144.83 ((THIS IS THE COMPLETE PUMP ASSY))
AJ5715116, WATER PUMP ASSY GASKET, $9.09 ((METAL GASKET))

AJTM15537, UPPER HOSE, $26.87
AJ5715536A, LOWER HOSE, $13.33

AJ5715909A SERPENTINE BELT $32.60 $24.45 (ALt, PS, AC +2 idlers//NOT WP!!)

==================================
Mid 05 and earlier....
AJ5715908, WATER PUMP BELT $14.25
AJ5715980A, TENSIONER $77.90
9XG015201K, TENSIONER BOLT $5.00
AJ5715940A, IDLER PULLEY $31.30
AJY115010, WATER PUMP ASSY $176.17 $132.13
AJ0315116, WATER PUMP ASSY GASKET $13.39 $10.04
AJTM15537, UPPER HOSE $35.83 $26.87
AJ5715536A, LOWER HOSE $17.76 $13.32

AJ5715909A, SERPENTINE BELT $32.60 $24.45 (ALt, PS, AC +2 idlers//NOT WP!!)

**************************************
TOOLS:
Basic hand tools
Bearing Separator and Puller Set

***************************************

NO OIL IN THE THROTTLE BODY OR FLEX HOSE
In January of 2013 I cleaned the TB when new plugs were put in. That was like 13,000 miles ago. No build up!


No oil pouring through from the crankcase and i run this thing. I don't LUG it! It Keeps it healthy! You can see where I cleaned it in January.


JJD952 Coolant

2006 Mazda 6s GS Hatchback, Lapis Blue | AJ 3.0 & AW6A-EL 6 Spd, >119,000

__________________________________________________ __________________
V6 repair info here:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by Final Impact; 02-10-2014 at 03:43 PM. Reason: Added OEM T PN GK3K-61-24XH
Final Impact is offline
The Following User Says Thank You to Final Impact For This Useful Post:
raleigh5 (03-02-2019)
post #3 of 28 (permalink) Old 10-31-2013, 11:20 PM Thread Starter
Registered User

Final Impact's Avatar

Join Date: Sep 2012
Location: USA, OR
Posts: 2,660
Mentioned: 109 Post(s)
Tagged: 1 Thread(s)
Quoted: 533 Post(s)
Thanks: 1,138
Thanked 942 Times in 635 Posts
Groans: 0
Groaned at 4 Times in 4 Posts
iTrader: 0 reviews
Anyone know what thread size is in that hole to "suck the pulley" back on?

Thanks!

2006 Mazda 6s GS Hatchback, Lapis Blue | AJ 3.0 & AW6A-EL 6 Spd, >119,000

__________________________________________________ __________________
V6 repair info here:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Final Impact is offline
Sponsored Links
Advertisement

post #4 of 28 (permalink) Old 11-01-2013, 09:45 AM
banana boat.


flipper66's Avatar

Join Date: Aug 2004
Location: lake Mary, Florida
Posts: 6,987
Mentioned: 55 Post(s)
Tagged: 2 Thread(s)
Quoted: 330 Post(s)
Thanks: 81
Thanked 999 Times in 847 Posts
Groans: 3
Groaned at 52 Times in 48 Posts
iTrader: 1 reviews
water pump, belt and tensioner install

This help. did this write up a few years back


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
flipper66 is offline
The Following User Says Thank You to flipper66 For This Useful Post:
Final Impact (11-01-2013)
post #5 of 28 (permalink) Old 11-01-2013, 10:04 AM Thread Starter
Registered User

Final Impact's Avatar

Join Date: Sep 2012
Location: USA, OR
Posts: 2,660
Mentioned: 109 Post(s)
Tagged: 1 Thread(s)
Quoted: 533 Post(s)
Thanks: 1,138
Thanked 942 Times in 635 Posts
Groans: 0
Groaned at 4 Times in 4 Posts
iTrader: 0 reviews
Thanks Flipper. Do know what pitch and Dia that hole is in the cam for the install tool? Hopefully my pulley has less taco when all is said an done.. lol
I guess I was lucky, shut down just as it threw up. Now to find the chunk of plastic so it doesn't kill it again. Hopefully the rear housing is ok.

2006 Mazda 6s GS Hatchback, Lapis Blue | AJ 3.0 & AW6A-EL 6 Spd, >119,000

__________________________________________________ __________________
V6 repair info here:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Final Impact is offline
post #6 of 28 (permalink) Old 11-01-2013, 10:09 AM
banana boat.


flipper66's Avatar

Join Date: Aug 2004
Location: lake Mary, Florida
Posts: 6,987
Mentioned: 55 Post(s)
Tagged: 2 Thread(s)
Quoted: 330 Post(s)
Thanks: 81
Thanked 999 Times in 847 Posts
Groans: 3
Groaned at 52 Times in 48 Posts
iTrader: 1 reviews
I can check my tool when I get home.

Or you can just pick up the same tool. they are less than 20 bucks at HF.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
flipper66 is offline
The Following User Says Thank You to flipper66 For This Useful Post:
Final Impact (11-01-2013)
post #7 of 28 (permalink) Old 11-01-2013, 11:02 AM Thread Starter
Registered User

Final Impact's Avatar

Join Date: Sep 2012
Location: USA, OR
Posts: 2,660
Mentioned: 109 Post(s)
Tagged: 1 Thread(s)
Quoted: 533 Post(s)
Thanks: 1,138
Thanked 942 Times in 635 Posts
Groans: 0
Groaned at 4 Times in 4 Posts
iTrader: 0 reviews
Quote:
Originally Posted by flipper66 View Post
I can check my tool when I get home.

Or you can just pick up the same tool. they are less than 20 bucks at HF.
Dude, this is the interwebs - wants help now!!! haha I'll just shove a couple bolts in it, tell I find one that fits.

oh, and headed there shortly.... Although I am curious if the bolts that hold the pump to the block can be removed and just drop the pump in one piece. Doubt it... And hopefully my bearing splitter fits through the holes in the pulley for extraction. We shall see...

2006 Mazda 6s GS Hatchback, Lapis Blue | AJ 3.0 & AW6A-EL 6 Spd, >119,000

__________________________________________________ __________________
V6 repair info here:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Final Impact is offline
post #8 of 28 (permalink) Old 11-01-2013, 11:16 AM
banana boat.


flipper66's Avatar

Join Date: Aug 2004
Location: lake Mary, Florida
Posts: 6,987
Mentioned: 55 Post(s)
Tagged: 2 Thread(s)
Quoted: 330 Post(s)
Thanks: 81
Thanked 999 Times in 847 Posts
Groans: 3
Groaned at 52 Times in 48 Posts
iTrader: 1 reviews
Quote:
Originally Posted by Final Impact View Post
Dude, this is the interwebs - wants help now!!! haha I'll just shove a couple bolts in it, tell I find one that fits.

oh, and headed there shortly.... Although I am curious if the bolts that hold the pump to the block can be removed and just drop the pump in one piece. Doubt it... And hopefully my bearing splitter fits through the holes in the pulley for extraction. We shall see...
sorry work in the way of car shenanigans.

couple of people tried to pull it that way, wasn't enough clearance from what I'm told to get it around the pulley. I would assume the dealer would have done it that way otherwise too instead of insanely silly tools.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
flipper66 is offline
The Following User Says Thank You to flipper66 For This Useful Post:
Final Impact (11-01-2013)
post #9 of 28 (permalink) Old 11-01-2013, 12:06 PM Thread Starter
Registered User

Final Impact's Avatar

Join Date: Sep 2012
Location: USA, OR
Posts: 2,660
Mentioned: 109 Post(s)
Tagged: 1 Thread(s)
Quoted: 533 Post(s)
Thanks: 1,138
Thanked 942 Times in 635 Posts
Groans: 0
Groaned at 4 Times in 4 Posts
iTrader: 0 reviews
Quote:
Originally Posted by flipper66 View Post
sorry work in the way of car shenanigans.

couple of people tried to pull it that way, wasn't enough clearance from what I'm told to get it around the pulley. I would assume the dealer would have done it that way otherwise too instead of insanely silly tools.
^^ Bills, work, love it all...
Agreed! FSM pic says NO wAy as two of the three bolts are under the pulley which hold the assembly to the block.

For future reference; Mazda wants $225 for what sounds like a reman part (it has a core charge) and DOESN'T come w/a gasket. Everyone in my town is having to order this thing and you can grab a new one on Rockauto for $65.
So, if your at 100,000 mile mark - be warned the plastic gets brittle and grenades.
Mine blew up right as a passed a car i suspect. I was sitting idle, heard the RPMs drop about 100, heard this bang and really had no idea WTF it was except this funny burning smell. Not your standard smell I must say. Anyway, all seemed well tell I heard the throw up sound and saw the needle skyrocket.... Had I not heard that, I'm guessing she woulda got pretty toasty fast.

2006 Mazda 6s GS Hatchback, Lapis Blue | AJ 3.0 & AW6A-EL 6 Spd, >119,000

__________________________________________________ __________________
V6 repair info here:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Final Impact is offline
post #10 of 28 (permalink) Old 11-01-2013, 12:22 PM
banana boat.


flipper66's Avatar

Join Date: Aug 2004
Location: lake Mary, Florida
Posts: 6,987
Mentioned: 55 Post(s)
Tagged: 2 Thread(s)
Quoted: 330 Post(s)
Thanks: 81
Thanked 999 Times in 847 Posts
Groans: 3
Groaned at 52 Times in 48 Posts
iTrader: 1 reviews
did the pulley on the water pump actually blow up?

my 03 doesn't have any plastic parts in that area or than the inlet and out let on the water pump assembly.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
flipper66 is offline
The Following User Says Thank You to flipper66 For This Useful Post:
Final Impact (11-02-2013)
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Mazda 6 Forums : Mazda 6 Forum / Mazda Atenza Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
