There are a bunch of spark plug threads floating around so I thought why not take a few pics and post a how to for those that may not have changed plugs on the speed or on any car for that matter.
OK
There is probably some ifo that could be added along the way but here is what I do know
The stock relacement NGK plug part number is
ILTR6A-8G
one step colder part number is
LTR7IX-11
I'm installing the one step colder NGK's in the pics
I bought a set of stock heat range plugs and 1 step colder plugs from www.clubplug.net
you can get either heat range plug for under 12.00 each compared to 19.00 and up offered at some other vendors
HKS makes 2 heat ranges as well
this is a cut and paste from the HKSUSA site:
M-Series Super Fire Racing Plugs
50003-M35LF *Mazda MZR Engine* ; Mazda 3, Mazda 6, MX-5 '06 7 1 $22.97



50003-M40LF *Mazda MZR Engine* ; Mazda 3, Mazda 6, MX-5 '06 8 1 $22.97


as for the install
it's very staight forward with common tools....
first remove the intercooler shroud by taking the 2 - 10mm bolts off and sliding the shroud back toward the firewall for removal

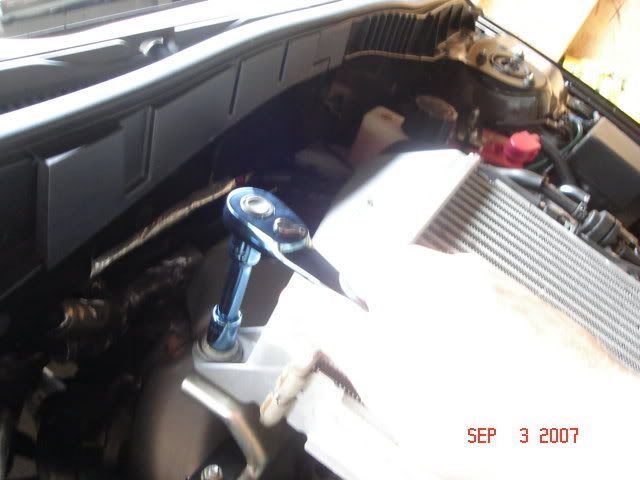

next start removing the your TMIC (top mounted intercooler) by taking off the 3 - 12mm mounting bolts
there are two in the front, one in the rear of the TMIC

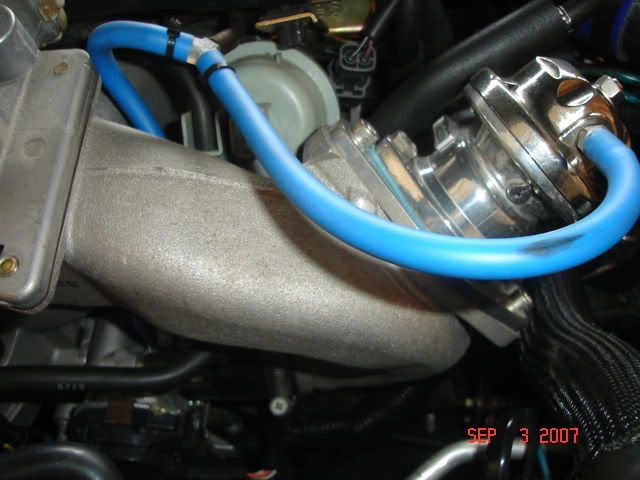

next remove the vacuum line to the BOV(blow off valve) and remove the lower hose clamp by the throttle body
this hose clamp can be loosened with a phillips screwdriver or a 10mm socket

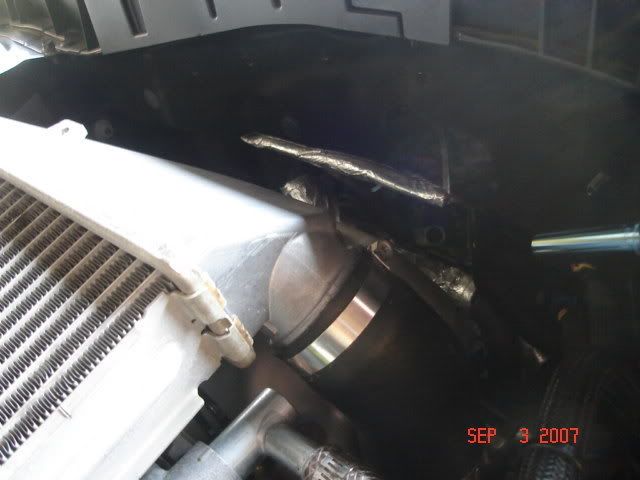

and lastly to remove the TMIC, loosen the hose clamp on the rear of the intercooler
also 10mm or phillips screwdriver

pull up on the rear of the intercooler seperating the intercooler from the rear hose connection - then wiggle the intercooler back and forth to free it from the front lower hose connection by the throttle body

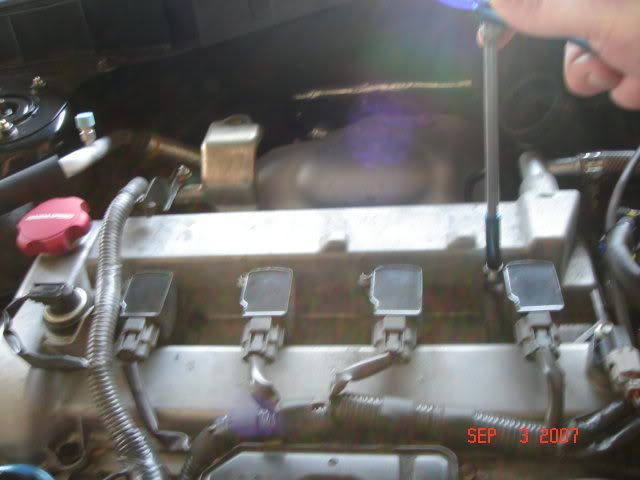

once the intercooler is off and set aside, remove the 4 - 8mm bolts that hold down the coils
then simply pull up on each coil carefully

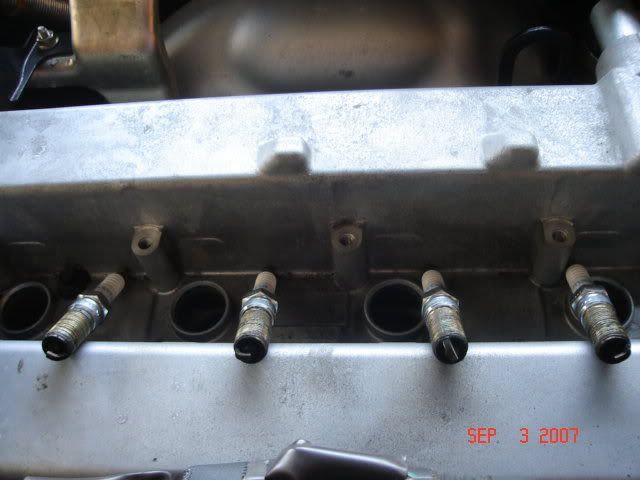

now you are ready to remove the spark plugs
using a 5/8 spark plug socket(has rubber in the socket to hold the plug in place while removing and installing)


once they are removed, reinstall everything in reverse order
I gapped my plugs at .32
Please be careful when doing this
I personally use feeler gauges when gapping plugs to ensure proper gap. I don't trust the cheesey spark plug tools from auto stores. I use a Jacob's Electronics plug gapper on standard type plugs but irridium tip plugs are very fragile so feeler gauges are the way to go IMO
I also use electric grease on the spark plug boot/coil before re-installing plus ***very important*** use a small amount of anti-seize on the new spark plug threads to allow for easy removal in the future.
